Cookie depositor MIMAC model SUPREMA PLUS 400 SI (C406)
In offer we have an automatic computerized dropping machine - cookie depositor brand MIMAC model SUPREMA PLUS 400 SI (machine with rotary nozzles and wire-cutting system) for the production of dropped cookies such as shortbreads of beaten short dough, wire-cut shortbreads, meringues, almond pastries, almond petit fours, puff pastries, éclairs, choux pastries, etc.
Technical specifications:
- Steel and aluminium structure mounted on wheels and stainless steel coverings
- PLC with 200 storable programs
- 7\" touch screen control panel
- Frontal USB port
- Electronic adjustment of the depositing roller speed
- Automatic, electronically controlled tray feed, both forward and backward
- Electronic adjustment of the depositing
- Automatic lowering of the conveyor for product detachment
- Automatic starting device
- Device for nozzle rotation with electronically controlled speed
- Variable speed of the wire-cutting unit
- Software for controlling the conveyor lowering at electronic control and variable speed (it allows the depositing of multi-layer products)
- Voltage 230V/50-60Hz/1-phase
- Software in English language
- User manual in English
Standard Equipment:

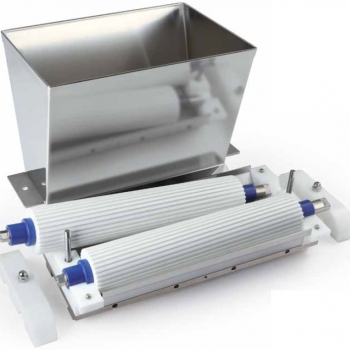

- N° 1 Roller head for trays 400 mm
- N° 1 Rotary mould at 6 exits P=63
- N° 6 Smooth nozzle Ø10 - Blue
- N° 6 Grooved nozzle Ø10 Z=10 - Blue
- N° 6 Off-center smooth nozzle R=14 Ø8
- N° 6 Off-center grooved nozzle R=14 Ø8 Z=8
- N° 1 Wire-cut mould T2 Ø42 at 6 exits P=63
- N° 1 Frame for wire-cut mould 6 exits 400/450
- N° 1 Set of service tools
